High density C/C composite normally means material with density higher than 1.80g/cm3. CFCCARBON LTD can produce carbon carbon composite with density upto 1.90g/cm3 or 1.95g/cm3. This density is the limit for C/C composite material already.
We have other customers require density of 1.90g/cm3 min. see bellow the hoop structure properties:

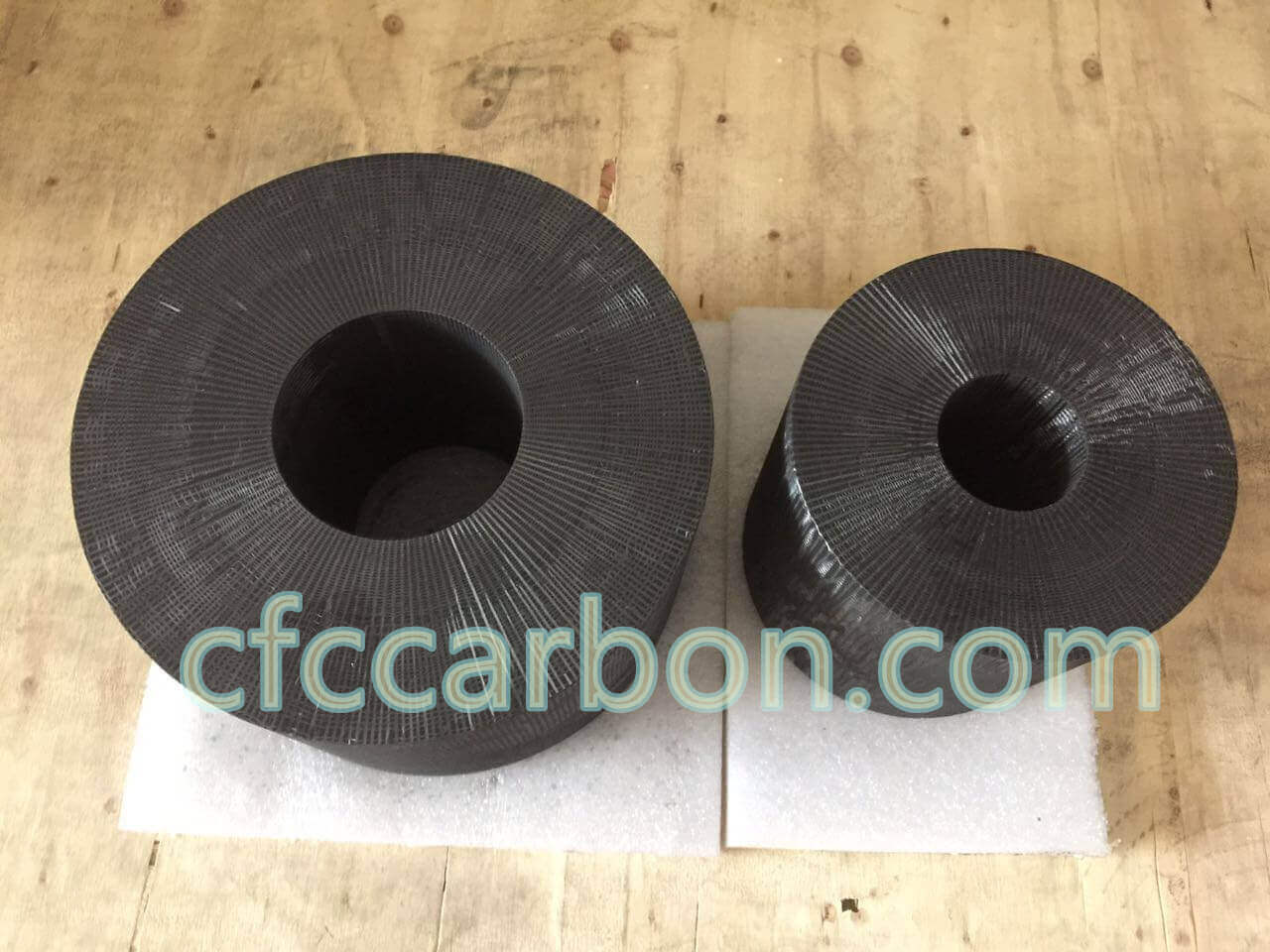

3D polar woven cylindrical carbon-carbon composite, pitch based:
Fiber volume percent: 40-45%
Fiber volume percent hoop: 45% ± 5
Fiber volume percent axial: 36% ± 4
Fiber volume percent radial: 19% ± 4
Bulk density: ≥ 1.9 (g/cm )
Tensile strength (hoop): ≥ 100 MPa
Tensile strength (axial): not tested MPa
Compressive strength (hoop): ≥ 80 MPa
Compressive strength (axial): ≥ 71 MPa
Thermal conductivity (hoop): ≥ 40 W/m.K at 900 °C
Thermal conductivity (axial): ≥ 22 W/m.K at 900 °C
Thermal expansion: < 3.1 1/ºC*10 -6
Open porosity: < 5%
Carbon Content: 99.9%
Graphitization Temperature: @ 2500 °C
There are different names of the material: CFC, Carbon composite, C/C, carbon fiber composite, carbon carbon composite, carbon reinforced carbon, carbon fiber reinforced carbon, carbon carbon… but its the same material. its different from carbon fiber products. because the C/C composite material can withstand high temperature, but the carbon fiber products can not.
Our company can supply high density carbon fiber composite with stable and reliable quality. We can produce all kinds of High density CFC. with upto 1.9g/cm3 density. CVI , CVD or Pitch coke based processing. temperature: >2000C. Density: 3D, 4D upto 1.9g/cm3. as per customers’ requests.
We can also produce pitch coke based CFC composite, with density higher then 1.9g/cm3. Hoop structure.
Please see the properties of highe density C/C composite with 3D CVD/CVI process:
| Specification | Requirements | Test results |
| Bulk density | 1.85 g/cm3 min | A1: 1.87g/cm3 |
| 1.85 g/cm3 min | A2: 1.87 g/cm3 | |
| 1.85 g/cm3 min | B1: 1.88 g/cm3 | |
| 1.85 g/cm3 min | B2: 1.87 g/cm3 | |
| Make of fibers | Four dimensions (4D) | Four dimensions (4D) |
| Tensile strength | X-Y: ≥130MpaZ:: ≥70Mpa | X-Y: 165MpaZ:: 78Mpa |
| Tensile Modulus | X-Y: ≥50GpaZ: ≥30Gpa | X-Y: 56GpaZ: 36Gpa |
| Flexural strength | X-Y: ≥120Mpa | X-Y: 139Mpa |
| Compressive strength | X-Y: ≥160MpaZ:: ≥220Mpa | X-Y: 164MpaZ:: 273Mpa |
| Thermal Conductivity | X-Y: ≥40 W/mkZ: ≥20W/mk 900°C | X-Y: 49 W/mkZ: 25W/mk 900°C |
| C.T.E （1000°C） | X-Y:0.5-1 ×10-6/KZ: 1-1.5 ×10-6/K | X-Y:0.62×10-6/KZ: 1.23×10-6/K |
| Porosity | 3-5% | 4.2% |
| Cp at RT-590°C | Report | X-Y:1.553 103J/(Kg.K)Z:1.635 103J/(Kg.K) |
| X-ray Inspection | No significant defects | No significant defects |
This is one order for our customer.
Special Properties of carbon fiber composite: High Acid-resisting and alkali-resisting properties; Low density compared to metals; High temperature, cold-resistant, tensile strength is 7-9times than Steel; very good thermal shock resistance…
Note: We can do X-RAY tests and other tests.
We can produce with all shapes of High density CFC, as per customers’ special request.
