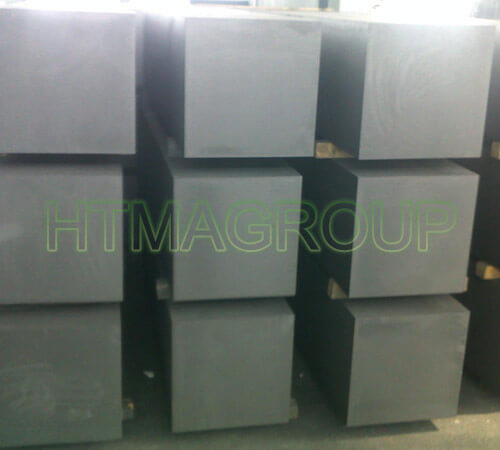

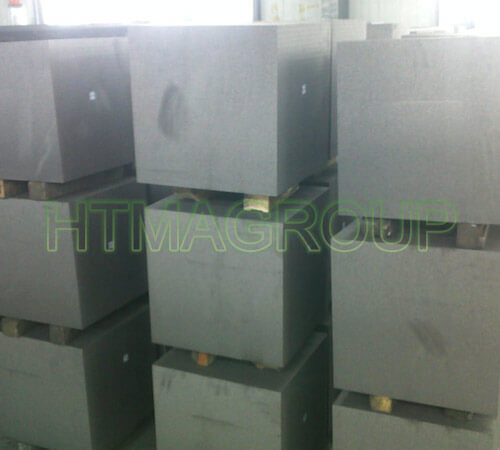

vibration graphite | vibrated graphite material
We can supply vibration graphite, vibration molding graphite, vibrated graphite material with stable and reliable quality, Our Products were sold all over the world. All sizes available, standard bulk density: 1.65g/cm3; 1.73g/cm3.
Detailed description
Our company can supply vibration graphite material, vibration molding graphite material, vibrated graphite material with stable and reliable quality, Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world.
Vibration graphite material have good structure and homogeneity, low ash content, high mechnical strength, good electric-thermal stability property, larger sizes are available, they can be used for maching parts with large size. Properties can be improved by further impregnation with resin and oxidation resistance treatment.
Vibration graphite are widely used for producing polycrystalline silicon in photovoltaic industry, heating and thermal insulation elements in monocrystalline silicon furnace. They are also used for casting, chemical industry, electron, nonferrous metal, high temperature processes, ceramics and refractory materials.
Please see the standard properties / data sheet of vibrated graphite material bellow:
| TYPE | Max Grain Size(mm) | Bulk density(g/cm3) | Specific Resistance(μΩ•m) | Bending Strength(MPa) | Compressive Strength(MPa) | Thermal Conductivity (gW/（m•K）) | C.T.E （100-600）℃ (10-6/℃) | Ash Content (％) | Modulus of Elasticity (GPa) | |||||||||
| Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | Guaranteed Value | Typical Value | |
| FXG-1 | 0.8 | 0.8 | ≥1.70 | 1.73 | ≤8.5 | 7.5 | ≥10.0 | 12.5 | ≥24.0 | 27 | ≥120 | 150 | ≤2.5 | 2.2 | ≤0.3 | 0.09 | ||
| FXG-2 | 0.8 | 0.8 | ≥1.73 | 1.76 | ≤8.0 | 7 | ≥12.0 | 13.5 | ≥31.0 | 34 | ≥130 | 160 | ≤2.5 | 2.1 | ≤0.3 | 0.09 | ||
| FCP-A | 2 | 2 | ≥1.58 | 1.6 | ≤11.5 | 10.5 | ≥6.0 | 6.5 | ≥18.0 | 18.5 | ≤2.5 | 2.4 | ≤0.3 | 0.09 | ≤9.3 | 7.5 | ||
| FCP-B | 4 | 4 | ≥1.57 | 1.58 | ≤11.5 | 10.5 | ≥6.5 | 7 | ≥17.5 | 18 | ≤2.5 | 2.4 | ≤0.3 | 0.09 | ≤9.3 | 7.5 | ||
| FCP-C | 8 | 8 | ≥1.56 | 1.58 | ≤12.5 | 11.5 | ≥7.0 | 7.5 | ≥16.0 | 17 | ≤2.5 | 2.4 | ≤0.3 | 0.09 | ≤9.3 | 7 | ||
| FCG-1A | 2 | 2 | ≥1.70 | 1.75 | ≤8.5 | 7.5 | ≥9.0 | 9.5 | ≥30.0 | 31 | ≤2.5 | 2.3 | ≤0.3 | 0.09 | ≤12.0 | 9.5 | ||
| FCG-1B | 4 | 4 | ≥1.69 | 1.73 | ≤8.5 | 7.5 | ≥9.5 | 10 | ≥29.0 | 30 | ≤2.5 | 2.3 | ≤0.3 | 0.09 | ≤12.0 | 9.5 | ||
| FCG-1C | 8 | 8 | ≥1.68 | 1.72 | ≤9.0 | 8.5 | ≥10.0 | 12.5 | ≥30.0 | 31 | ≤2.5 | 2.3 | ≤0.3 | 0.09 | ≤12.0 | 9 | ||
| sizes below: | mm | |||||||||||||||||
| 415+10\-10*425+10\-10*1850+50\-50 515+10\-10*525+10\-10*1850+50\-50 | ||||||||||||||||||
| 565+10\-10*455+10\-10*1850+50\-50 565+10\-10*565+10\-10*1850+50\-50 | ||||||||||||||||||
| 670+10\-10*415+10\-10*1850 +50\-50 670+10\-10*415+10\-10*2250 +50\-50 | ||||||||||||||||||
Except the vibrated graphite material, we have other types of graphite material: isostatic graphite, moulded graphite, extruded graphite, mechanical graphite and carbon brush material. We can produce all sizes /shapes of machined products, like graphite rods, graphite blocks, graphite plates, sheets…
Note: All sizes available, standard bulk density of vibration graphite material: 1.65g/cm3; 1.73g/cm3.
We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions
