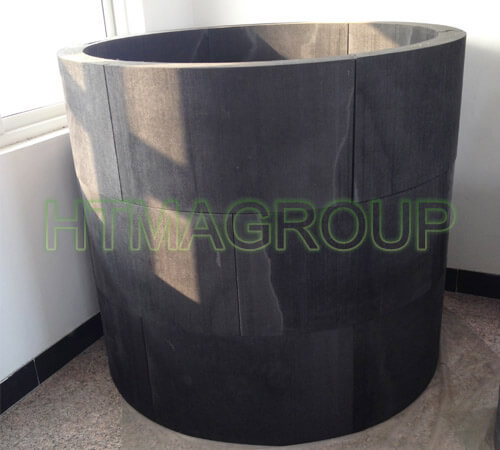

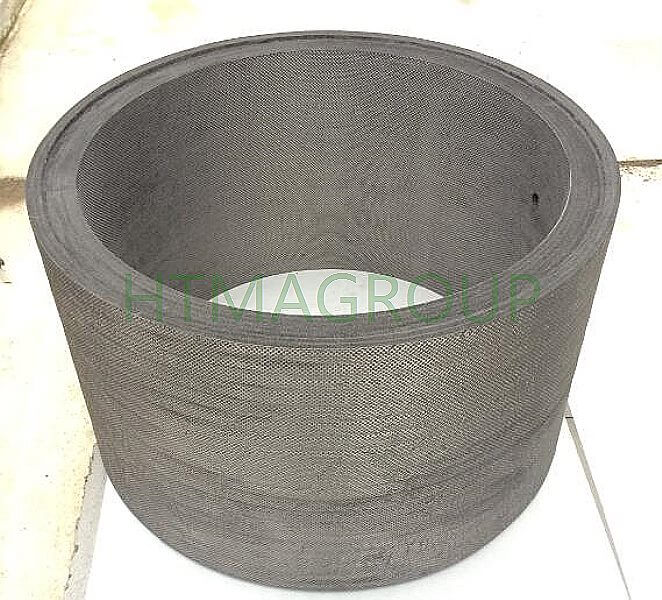

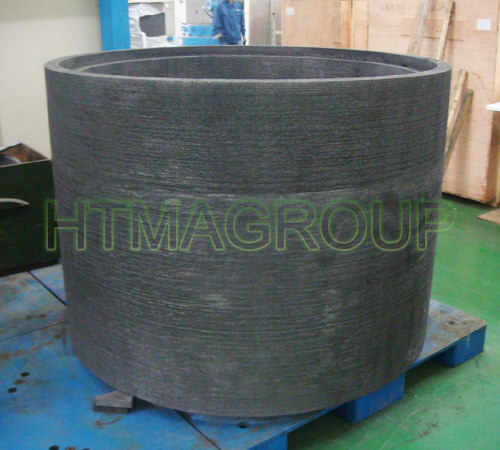

Heating insulation graphite barrel
Our company can supply heating insulation graphite barrel with stable and reliable quality. The heating insulation graphite barre is made from rigid graphite felt . We manufacture heating insulation Graphite barrel for all kinds: Pan, Rayon based. Processing temperature is 2200C and 2600C.
Detailed description
Our company can supply heating insulation graphite barrel with stable and reliable quality. The heating insulation graphite barrel/graphite insulation board is made from rigid graphite felt/board: Pan rigid graphite felt and Rayon rigid graphite felt. We manufacture Graphite insulation barrel /graphite insulation board for all kinds: Pan, Rayon based. Processing temperature for graphite insulation barrel/graphite insulation board is 2200C and 2600C.
There are two grades of raw materials: Pan graphite felt and Rayon graphite felt.
For Pan graphite insulation barrel/graphite insulation board, Processing temperature: 2200C, 2600C. Thickness 10-100mm, width: 10-1500mm. Height: upto 3meters.
For Rayon graphite insulation barrel/graphite insulation board, Processing temperature: 2200C, 2600C. Thickness 10-100mm, width: 10-1500mm. Height: upto 3meters.
See bellow the standard properties/ data sheet of Pan rigid graphite felt, with processing temperature of 2200C:
Product name: Pan based rigid graphite felt.
| Rigid Graphite Board Specification | grade: PRF-3 | |
| Property | ||
| Density | g/cm3 | 0.18 |
| Carbon Content | % | >99.9 |
| Ash Content | ppm | <=200 |
| Flexural Strength | Mpa | 0.90 |
| Compressive Strength at5% Deformation | Mpa | 0.07 |
| Thermal Conductivity 1000℃ /1832℉ | W/m.k | 0.32 |
| 1500℃ /2732℉ | W/m.k | 0.44 |
| 2000℃ /3632℉ | W/m.k | 0.59 |
| Volatile | % | 0 |
| Electrical Resistivity Perpendicular | mΩcm | 900 |
| Electrical Resistivity Parallel | mΩcm | 70 |
| Environment to Use | ℃ | 3600℃/6512℉ in vacuum |
| Heat Treating Temp | ℃ | 2200 |
| Standard Size (Board) | inch | 1.6”*40”*60” |
| Max Size (Board) | inch | 12”*48”*63” |
| Max Size (Circular Plate) | inch | 75”*12” |
| Max Size (Cylinder) | inch | 75”*12”*48”(H) |
Thickness: 10-150mm. Width/length: 1000mm, 1200mm.
Size details:
| name | PRF-3 |
| Thickness(mm) | 10 / 15 / 20 / 30 / 40 / 50 / 80/150 |
| Width(mm) | 1000 / 1200 |
| Length(m) | 1000/ 1200 /1500 |
| Attn | We can produce as per customers’ special requirements |
Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world. We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions
